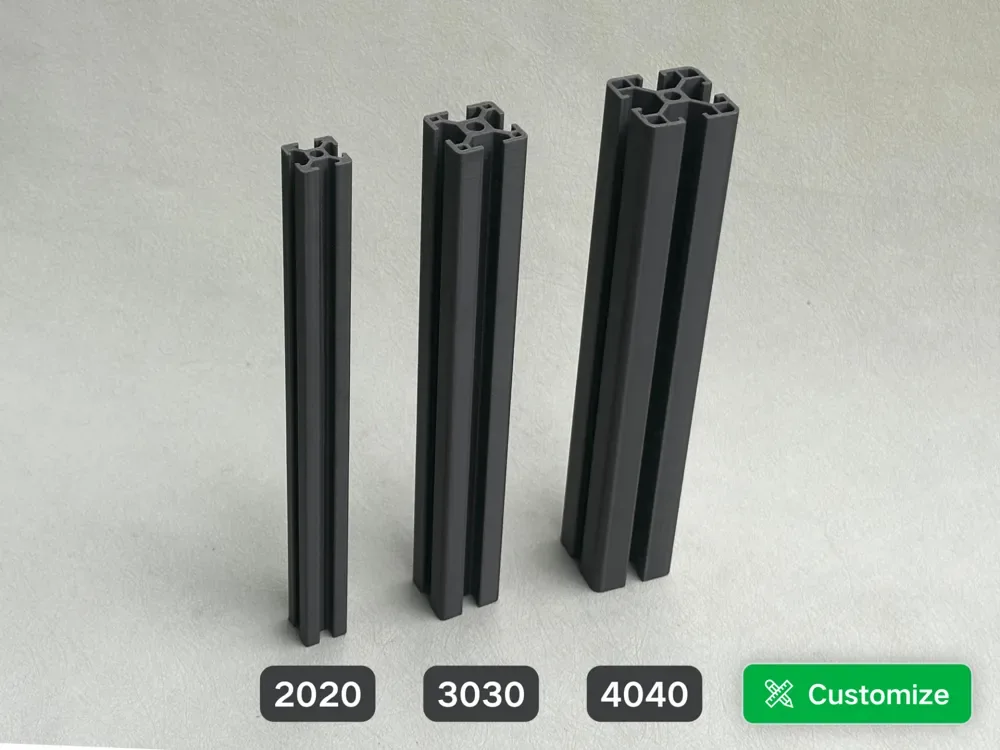

Design reference photoCreator photo; included parts are listed below. Accessories not included.
Printed 2020-Style Profile — 175 mm
3D printed in PETG for prototyping with an extrusion-shaped plastic part.
Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.
Check fit before ordering ↓A closer look
3D printed in PETG for prototyping with an extrusion-shaped plastic part. Includes one nominal 20 × 20 × 175 mm profile section. Hardware, devices, accessories shown and installation are not included. Printed plastic; this is not an aluminum extrusion.
Check the fit
Start with these details so you can choose the right part for your setup.
- Check the intended tool or profile, mounting clearances and any separately supplied fixings.
What’s included
- One nominal 20 × 20 × 175 mm profile section.
- Hardware, devices, accessories shown and installation are not included.
Try an extrusion-style layout in printed plastic
This profile section is useful when you want a physical reference for a small prototype built around a 2020-style outline. It can help explore where a bracket, enclosure wall or light accessory should sit before choosing the final materials and hardware. A short section is convenient for bench comparisons because you can bring other parts to it and inspect the relationship from several directions. Use it to answer layout questions, such as whether a fixing remains accessible or whether a nearby panel clears the chosen profile shape.
Read the nominal size in the context of the project
The nominal 20 × 20 × 175 mm dimensions describe this single printed profile section. They establish its basic scale, but the details of the slots and ends determine how other parts meet it. Compare slot openings, internal shapes and the available fixing space with any brackets or nuts you intend to use. A component labelled 2020 is not automatically compatible with every other 2020-style part. Check the orientation of each accessory as well, since rotating the profile or approaching it from a different side can change access to a fastener.
Use a repeatable prototype check
Set the profile on the bench with the intended mating component and hardware, then check one connection at a time. Start fasteners gently and confirm that they engage the intended part rather than bottoming out or spreading a slot. Note the positions that work and keep those measurements with your project drawing. If the prototype is being used to plan an eventual metal assembly, compare the metal supplier's actual profile drawing separately. The printed section is a useful shape reference, but its fit and stiffness should not be assumed to duplicate another material's version.
Handle it as a prototype component
The section is printed in PETG rather than made from aluminium, and no structural load or fastening torque is specified. Choose uses where the connection can be observed and revised rather than relying on it as a rated structural member. Store the section where the long body and slot edges will not be bent or crushed by heavier tools. Brush debris out of the slots before fitting accessories and inspect any area that has been repeatedly fastened. If a slot has deformed, use that observation to revise the prototype instead of tightening harder to compensate.
Product questions
What does the listed price include?
One nominal 20 × 20 × 175 mm profile section. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Hardware, devices, accessories shown and installation are not included.
Will this match everything shown in the photo?
The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.
Can this replace an aluminium extrusion in an existing machine?
Do not assume equivalent stiffness, strength or fastener performance. This printed plastic section is intended for prototyping, and no structural replacement rating is supplied.
Will ordinary 2020 brackets and T-slot nuts fit?
They need a geometry check. Compare the exact slot and end details with your hardware, then make a gentle trial connection before building a larger arrangement.
What is a useful first test with one section?
Try the most critical bracket or panel connection first. Check alignment, bolt access and clearances, then record the working arrangement before adding other parts to the prototype.
Original design: TuTu — Custom Length Aluminum Extrusions 2020/3030/4040. MakerWorld model 3126808. Original design
