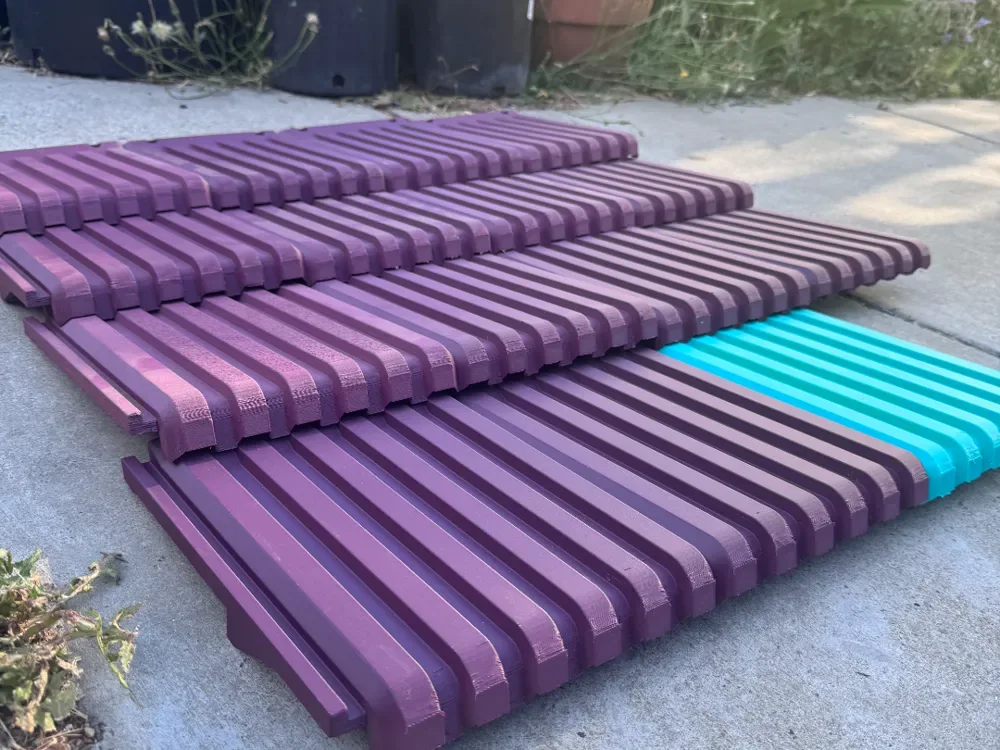

Creator design reference for Interlocking Tile — Prototype Sample; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Workshop / Organize your workshop

Interlocking Tile — Prototype Sample

3D printed in PETG for evaluating an interlocking tile shape for a model or prototype.

$94.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for evaluating an interlocking tile shape for a model or prototype. Includes one printed tile sample. Hardware, devices, accessories shown and installation are not included.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Check the intended tool or profile, mounting clearances and any separately supplied fixings.
  • Sold as a single prototype tile sample, not a finished floor covering.

What’s included

  • One printed tile sample.
  • Hardware, devices, accessories shown and installation are not included.

Evaluate the shape before committing to a larger model

A physical tile sample lets you inspect an interlocking concept in your hands while planning a model or prototype. It is useful for judging the edge shape, overall scale and relationship to surrounding parts before building a larger layout. Start by defining what the sample needs to answer: whether the outline suits the model, how a connector edge will be approached, or where the tile sits relative to other objects. A clear evaluation goal makes a single sample more informative than treating it as an isolated display piece.

Use the dimensions as a planning reference

The approximate 259.42 × 200 × 40.03 mm measurements describe the printed tile's individual bounding dimensions. They help you reserve bench or model space, but they do not establish a repeating coverage area or the completed height of a joined arrangement. Interlocking edges can overlap or extend beyond the main tile body, so check the actual mating geometry before calculating a larger layout. Trace the sample's outline or compare it with a dimensioned drawing of the project to understand which edges define the visible shape and which participate in the connection.

Plan a useful fit comparison

This listing supplies a single tile sample. To assess an interlock, you will need a corresponding mating part or a suitably defined reference in your own project. Bring the pieces together gently and look for the point where alignment begins, where contact occurs and how they separate again. Do not force a mismatch and assume the resulting tightness indicates a successful fit. Record what worked and what did not, including any interference with surrounding model components. A repeatable trial is especially useful if the prototype will later be revised or produced in another material.

Keep its role as a prototype clear

The sample is intended for evaluating a shape, with no floor-covering, structural, slip-resistance or service-load rating stated. Handle it as a prototype component and avoid using it as a step, protective surface or installed walking surface. Store it flat where the interlocking edges will not be bent by other objects, and clean away debris before each fit trial. If an edge chips or deforms, note that change in your evaluation because subsequent trials may no longer represent the original geometry. Keep photographs and measurements with the project notes for an informed next step.

Product questions

What does the listed price include?

One printed tile sample. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Hardware, devices, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Can one sample demonstrate a complete tile-to-tile connection?

Only if you have a suitable mating part or reference to compare it with. The single sample lets you inspect its own geometry, but it does not supply a second tile.

Is this ready to install as floor covering?

No. It is sold for model or prototype evaluation. No flooring performance, installation specification or walking-surface rating is provided.

How should I estimate a larger layout?

Measure the actual joined spacing and overlap using compatible parts or a verified drawing. Do not multiply the tile's bounding dimensions and assume that equals finished coverage.
