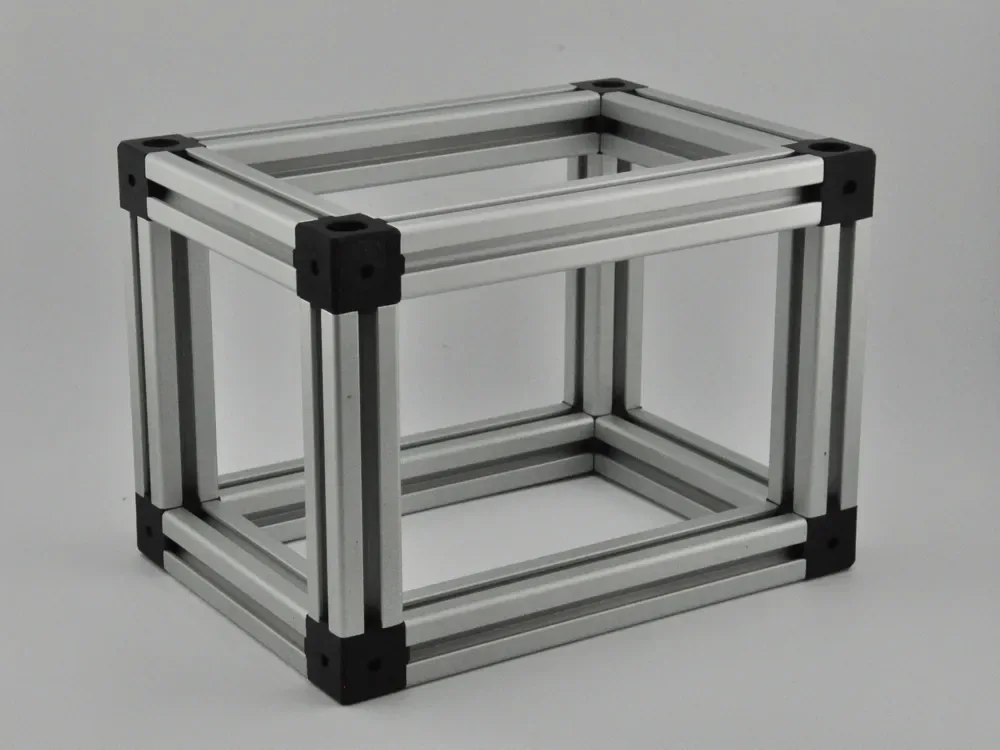

Creator design reference for Three-Way Corner Connector — 20 × 20 Profile; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Workshop / Organize your workshop

Three-Way Corner Connector — 20 × 20 Profile

3D printed in PETG for joining compatible profiles in a light-duty project.

$27.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for joining compatible profiles in a light-duty project. Includes one printed three-way corner connector. Hardware, devices, accessories shown and installation are not included.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Check the intended tool or profile, mounting clearances and any separately supplied fixings.

What’s included

  • One printed three-way corner connector.
  • Hardware, devices, accessories shown and installation are not included.

Explore a three-direction frame corner

A three-way corner connector is useful for a light-duty project where compatible 20 × 20 profiles meet in three directions. It can help establish the orientation of a small frame or enclosure concept before the rest of the layout is committed. Begin by identifying which profiles form the corner and how their positions affect the surfaces or accessories around them. A physical trial arrangement makes it easier to see whether a panel can be fitted, whether a nearby part has enough clearance, or which assembly order will be most practical. Keep the intended use within the described light-duty project scope while assessing the complete structure separately.

Check the profile interface rather than the name alone

Compare the actual profile shape with the connector's engagement features. The nominal 20 × 20 description is a useful starting point, but it does not describe every groove, bore, or end feature found on products using that size. The connector is listed at approximately 21.5 × 21.5 × 21.5 mm overall; those dimensions do not define the full assembled corner or the length of profile engagement. Check the end condition of each profile and any separately supplied fixing arrangement. A square, clean interface is easier to assess than one with debris or a damaged end. Confirm how the joint is intended to be retained before extending it into a larger layout.

Trial-assemble before adding the rest of the frame

Lay out the three profile directions and confirm their orientation while the assembly is easy to handle. Fit the PETG connector gently and avoid using the profiles as long levers to force a tight or mismatched interface. Check the corner relationship before attaching panels or other parts that could hide the joint. The printed connector has no specified structural load rating, so a frame that supports equipment needs its own appropriate support assessment. For routine adjustments, support the neighbouring members as the joint is loosened or separated. Inspect the connector after repeated fitting or an impact, and correct misalignment before it spreads through the rest of the project.

Product questions

What does the listed price include?

One printed three-way corner connector. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Hardware, devices, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Will it fit every 20 × 20 extrusion?

No universal fit is specified. Compare the actual end, groove, and engagement geometry with the connector. Matching the outside dimensions alone does not establish a compatible joint.

Can I use it to support heavy equipment?

The listing describes a light-duty project connector and gives no load rating. Choose support components with requirements appropriate to the equipment and assess the complete frame, joints, and mounting arrangement.

Why check assembly order at the corner?

Once additional profiles or panels are fitted, access to the joint may be reduced. A trial corner lets you confirm orientation, fixing access, and the sequence needed to install the remaining parts.

Original design: NeOn — Corner Connector for 20x20mm Profiles 3-Way Joint. MakerWorld model 2464040. Original design
