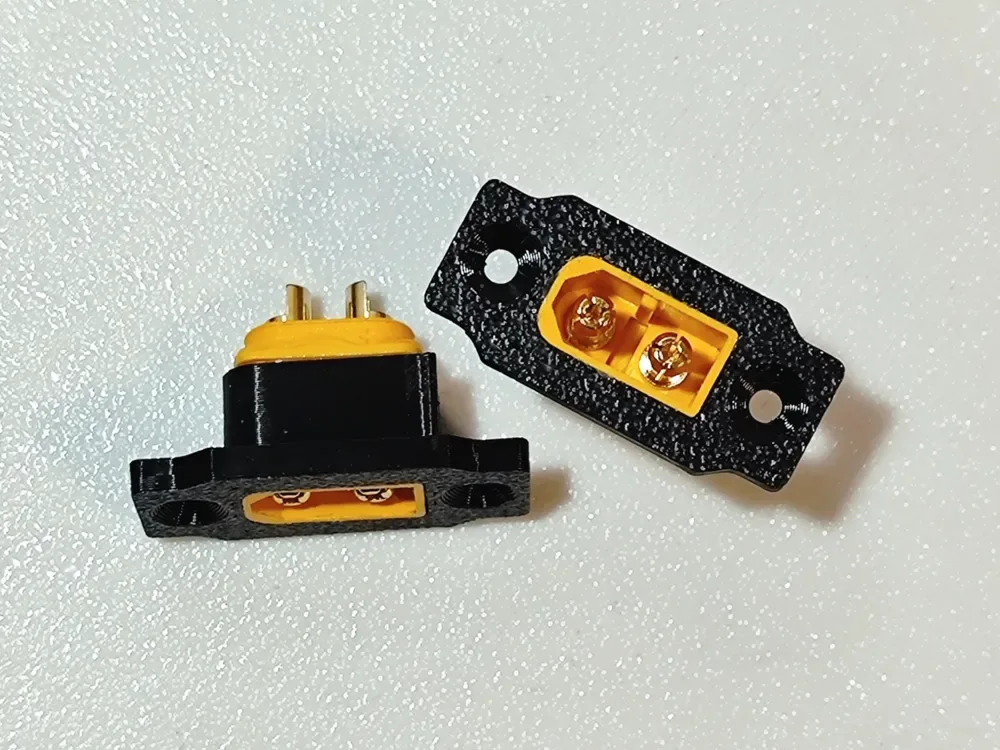

Creator design reference for XT60 Panel Mount Bracket; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Electronics & racks / Parts for your next project

XT60 Panel Mount Bracket

3D printed in PETG for holding a compatible XT60 connector in a panel.

$27.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for holding a compatible XT60 connector in a panel. Includes one printed mounting bracket. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.

What’s included

  • One printed mounting bracket.
  • Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Give a project connector a fixed panel location

A panel bracket can make an XT60 connection easier to find and operate by putting it in a repeatable position on the outside of a project. It is useful when you want the cable interface associated with the enclosure rather than loose beside it. Choose the location with the normal connection routine in mind: there should be room to grip the mating connector and move it straight in and out. The bracket handles the physical positioning; your chosen connector, wiring and electrical design supply the actual power connection.

Compare connector body and panel details

The printed bracket measures approximately 34 × 15.8 × 11.9 mm overall. Those outside dimensions do not define a panel cutout, fixing-hole spacing or compatible panel thickness. Compare the exact XT60 body, any moulded shoulders and the rear wire exit with the bracket's interface. Include any insulation or rear cover already fitted to the connector. Then check the panel from both sides, leaving room behind it for the connector tail, wiring and assembly access. A front location that looks convenient can still be difficult to build if another component sits immediately behind it.

Assemble the mechanical fit before final wiring

Use an unpowered trial fit to establish the assembly order and any separately required fasteners. Check that the connector can mate fully without the bracket contacting the opposing plug. Select fixing hardware for the actual panel and printed openings, tightening without distorting the bracket. Arrange cable support so normal plugging and unplugging does not pull on the internal wire terminations. If the enclosure will be opened regularly, plan enough access to inspect or disconnect the rear wiring without pulling the bracket out of the panel.

Keep the connection serviceable

Use the connector bodies when joining or separating the connection rather than pulling on the cable or using the bracket as a lever. Periodically inspect the panel fixing, printed edges and wire exit for movement. Clean around the bracket with the project disconnected, keeping debris and liquid away from the contacts. No current, insulation or sealing rating is supplied by this printed mount, and fitting it does not change the selected connector's specifications. Recheck the layout if you switch to a different connector housing, wire size or rear shell.

Product questions

What does the listed price include?

One printed mounting bracket. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Can I cut a panel opening using the bracket's overall dimensions?

No. The outer measurements are not a cutout drawing. Confirm the actual mounting interface, hole locations and connector clearance before making an opening in your panel.

Does the bracket accept every XT60 housing style?

No universal fit is stated. Compare the exact connector body, shoulders, rear cover and wire exit, including the mating plug's clearance when connected.

Will this increase the connector's electrical capacity?

No. It is a mechanical bracket. Electrical performance depends on the selected connector, wires, terminations and complete project design.
