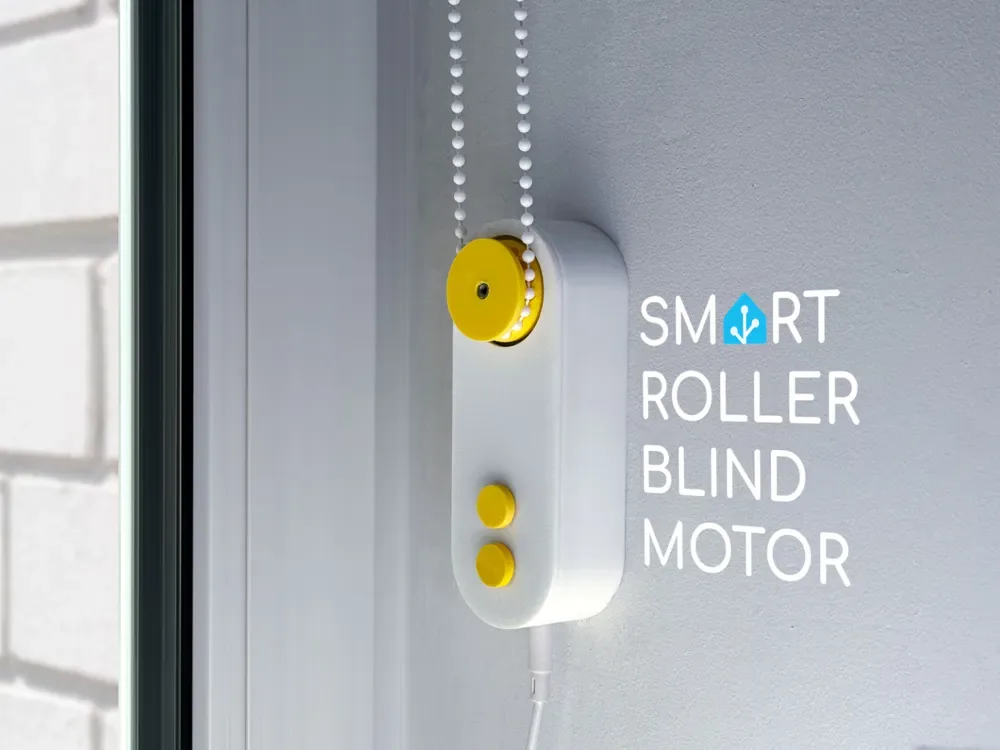

Design reference photoCreator photo; included parts are listed below. Accessories not included. The photo shows an assembled project; this listing includes only the specified printed components.
Roller Blind Motor Project — Eight Printed Parts
3D printed in PETG for building a compatible motorized blind project.
Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.
Check fit before ordering ↓A closer look
3D printed in PETG for building a compatible motorized blind project. Includes eight printed parts: enclosure body, lid, gear, internal mount, two buttons and two small mounting tabs. Motor, ESP32 board, motor driver, power supply, wiring, switches, fasteners, firmware setup and installation are not included.
Check the fit
Start with these details so you can choose the right part for your setup.
- Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.
What’s included
- Eight printed parts: enclosure body, lid, gear, internal mount, two buttons and two small mounting tabs.
- Motor, ESP32 board, motor driver, power supply, wiring, switches, fasteners, firmware setup and installation are not included.
Plan the mechanical side of a motorized blind project
This set brings together the printed pieces for a compatible roller-blind motor project: a housing arrangement, a gear and the small interface parts needed by the listed design. It is useful when you are ready to turn a chosen electronics and drive concept into a more organized physical assembly. Start with the blind itself and trace the path from motor output to blind movement. That establishes where the enclosure, gear and internal mount need to sit, and whether the project can be reached comfortably for setup and maintenance.
Check the drive interface before choosing electronics
Compare the blind's mechanism, the motor shaft and the printed gear interface before assuming the parts will work together. The enclosure body is approximately 50 × 140 × 32 mm as an individual printed component, with the lid and internal mount listed separately. These are not complete installed dimensions. Allow for the motor, controller, driver, plugs and wire bends in your layout. Button pieces also need to meet compatible separately supplied switches; their presence does not establish a particular switch type or provide an electrical control function.
Build and test in manageable stages
Lay out the printed pieces and perform an unpowered mechanical trial before completing the wiring. Confirm the internal mount aligns with the chosen parts and that the lid can close without pinching leads. Develop the electronics and firmware setup as a separate stage, using the requirements of the motor, driver and power supply. Begin movement checks with a controlled arrangement where you can observe the mechanism and stop it promptly. Configure travel limits and controls for the actual blind rather than assuming that a successful bench rotation proves the final installation is ready.
Make future adjustment accessible
Choose an installation position that leaves access to the buttons, fixings and lid, while keeping the mechanism and cables clear of the blind's movement. Arrange the project so loose wires cannot enter moving parts. The printed kit does not establish compatibility with a particular blind, automation service or lifting load, so those decisions remain part of the completed project. During use, inspect the gear engagement and mounting points for movement or wear. Disconnect power before opening the enclosure or making mechanical adjustments, and recheck the complete travel after changes.
Product questions
What does the listed price include?
Eight printed parts: enclosure body, lid, gear, internal mount, two buttons and two small mounting tabs. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Motor, ESP32 board, motor driver, power supply, wiring, switches, fasteners, firmware setup and installation are not included.
Will this match everything shown in the photo?
The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.
Will the kit motorize my blind straight out of the box?
No. It supplies the eight printed parts for a compatible project. The motor, electronics, power system, hardware, firmware and installation must be completed separately.
What is the first compatibility check?
Compare the blind's drive mechanism with the intended motor and printed gear interface. Then confirm the enclosure layout, switch arrangement and mounting location for those exact components.
Does the set include preset travel limits or smart-home control?
No firmware setup or automation function is supplied. Controls and travel limits depend on the electronics and software you choose and configure for the actual blind.
Original design: Printy.Po — Smart Roller Blind Motor | ESP32 + Home Assistant. MakerWorld model 3292116. Original design
