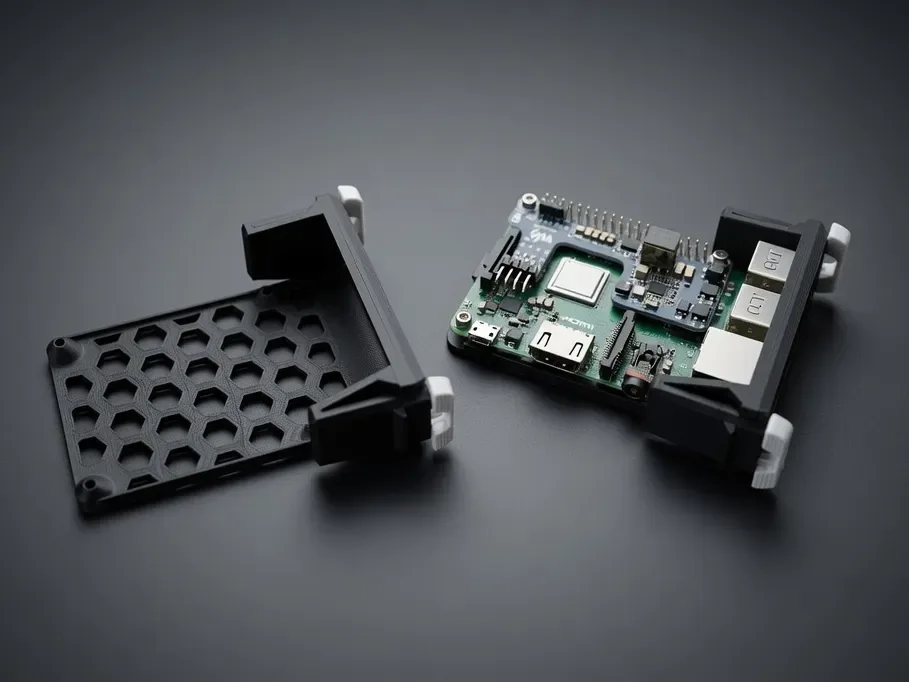

Creator design reference for Raspberry Pi 3B+ Snap-In Rack Carrier; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Electronics & racks / Parts for your next project

Raspberry Pi 3B+ Snap-In Rack Carrier

3D printed in PETG for mounting a compatible Raspberry Pi in the matching rack system.

$29.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for mounting a compatible Raspberry Pi in the matching rack system. Includes one printed frame and one handle. Hardware, devices, accessories shown and installation are not included.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.

What’s included

  • One printed frame and one handle.
  • Hardware, devices, accessories shown and installation are not included.

Make a small computer part of an organized rack

A removable carrier gives a Raspberry Pi project a defined place among the other devices in a compatible rack. It can make a bench setup easier to service by keeping the board associated with a particular slot and a visible handle. Plan the carrier's location around the jobs the Pi performs: a frequently reconfigured project benefits from easy connector access, while a device left running needs a sensible cable route and suitable space around its components. The frame and handle provide the physical carrier pieces for the matching system.

Match both the board and the receiving rack

There are two fit checks: the Raspberry Pi 3B+ must fit the carrier, and the carrier must fit the intended rack. Compare the board outline, mounting points and port arrangement with the printed frame, then compare the rack's guides and retention interface. Added heatsinks, headers, cables or other accessories can change the occupied space. The frame's approximate 26.08 × 87.8 × 82.08 mm component bounds do not define a generic rack size. The small handle is a separate component, so use the completed arrangement when planning front clearance.

Plan a serviceable cable layout

Before placing the board in the rack, decide which connections must remain attached when the carrier is accessed and which should be unplugged first. Route cables with enough freedom to reach their ports without pushing the frame sideways or pulling on the board. Keep power and network connections identifiable, especially when several similar computers share a rack. Check that the handle can be reached without catching neighbouring leads. A useful installation allows the carrier to be removed deliberately while the surrounding equipment stays in place, subject to the matching rack's own assembly method.

Keep access and airflow part of the arrangement

Trial-fit the board with power disconnected and confirm that clips or locating surfaces do not press on components. Follow the board and accessory suppliers' requirements for airflow and clearance, particularly when stacking several devices. Use the handle as part of the carrier's intended removal method, without treating it as a handle for the whole rack. During maintenance, remove loose dust and inspect the carrier's locating features for wear or damage. Repeat the fit check after adding a board accessory, changing cables or moving the carrier to another rack slot.

Product questions

What does the listed price include?

One printed frame and one handle. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Hardware, devices, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Is this a universal Raspberry Pi rack mount?

No universal interface is stated. It is intended for a compatible Raspberry Pi 3B+ and the matching rack system, so both sides of the fit need checking.

Can I leave cables connected when removing the carrier?

That depends on cable slack and the rack's removal path. Plan the service sequence so neither the carrier nor its connected ports is pulled by a short cable.

Will a heatsink or add-on board still fit?

Compare the complete assembled board with the carrier and adjacent rack space. Accessory height and connector direction can change clearance even when the base Pi fits.

Original design: pixelwave — Raspberry Pi 3B+ (2017) for Rack Snap-in system. MakerWorld model 3067754. Original design
