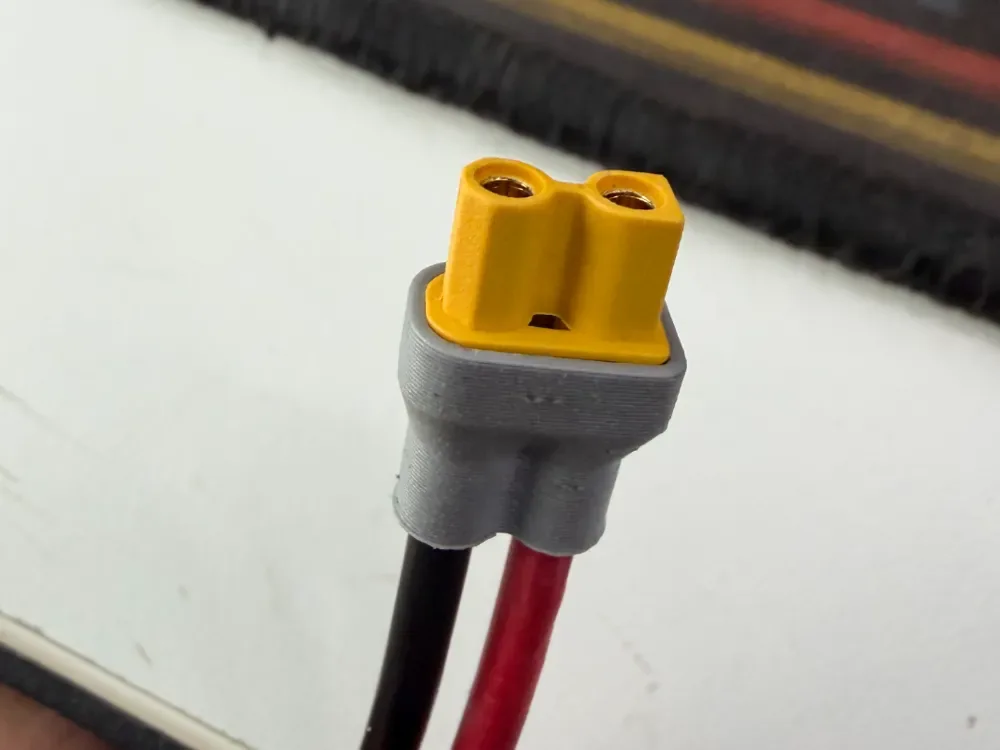

Creator design reference for Connector Tail Shell — XT30 Design, 11.9 mm; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Electronics & racks / Parts for your next project

Connector Tail Shell — XT30 Design, 11.9 mm

3D printed in PETG for covering the rear of a compatible XT30 connector.

$27.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for covering the rear of a compatible XT30 connector. Includes one shell at the specified 11.9 × 6.9 × 11.4 mm outer size; connector fit must be checked. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.
  • The outer shell size is 11.9 × 6.9 × 11.4 mm. XT30 connector fit has not been verified; compare your connector before ordering.

What’s included

  • One shell at the specified 11.9 × 6.9 × 11.4 mm outer size; connector fit must be checked.
  • Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

A finishing piece for an XT30 project

A connector tail shell is useful when you want the rear of a compatible connector to have a more deliberate shape within a small electronics build. This part covers the connector rear; the connector, wire termination and electrical performance still come from your separately chosen components. Consider it while planning the cable assembly, rather than after every connection has already been completed. A tail cover may need to pass over wiring or be positioned before other pieces restrict access, so establish the fitting sequence with an unpowered sample first.

Compare the rear shape, not just the connector name

The specified 11.9 × 6.9 × 11.4 mm measurements describe the outside of this shell. They do not state the internal opening or guarantee that an XT30 connector will fit. Compare the connector's rear body, any shoulder or raised moulding, and the space taken by the wires and existing insulation. The route the wires take out of the connector matters as much as the housing outline. Straight wires and wires turning immediately into a nearby enclosure can require different clearances even when the connector bodies look identical.

Plan the complete cable route

Place the connector where it will actually be used and allow room to hold its body when connecting or separating the mating halves. The shell should not force the cable into a sharp turn or prevent a connector from seating fully. Check nearby case walls, other plugs and removable covers with the whole assembly in position. Existing insulation, suitable termination methods and any required cable support should be planned independently. This printed accessory has no stated electrical, sealing or strain-relief rating, so its presence should not be used to justify omitting those provisions.

Fit gently and keep access for inspection

Work with the project disconnected from its power source. Start with a gentle trial fit, looking for contact between the shell and parts of the connector that must remain accessible. Stop if installation requires forcing the wire bundle, scraping insulation or distorting the connector body. When the project is serviced, inspect the shell for cracks and check that the cable still leaves it freely. Remove dust with a soft brush or cloth while the assembly is disconnected; keep cleaning liquid away from the connector contacts and let any cleaned parts dry before reuse.

Product questions

What does the listed price include?

One shell at the specified 11.9 × 6.9 × 11.4 mm outer size; connector fit must be checked. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Does 11.9 mm describe the opening inside the shell?

No. It is one of the listed outer dimensions. Internal clearance and the exact XT30 rear profile need to be compared separately before ordering.

Can this replace insulation over the wire terminations?

Do not use the printed cover as a substitute for the insulation and termination provisions required by your electrical project. No electrical protection rating is specified.

What information helps with a fit enquiry?

Provide clear views of the connector rear and wire exit, the connector body's measurements, and the outside diameter of the completed insulated wire bundle.

Original design: 李大锤 — XT30保护套. MakerWorld model 2724053. Original design
