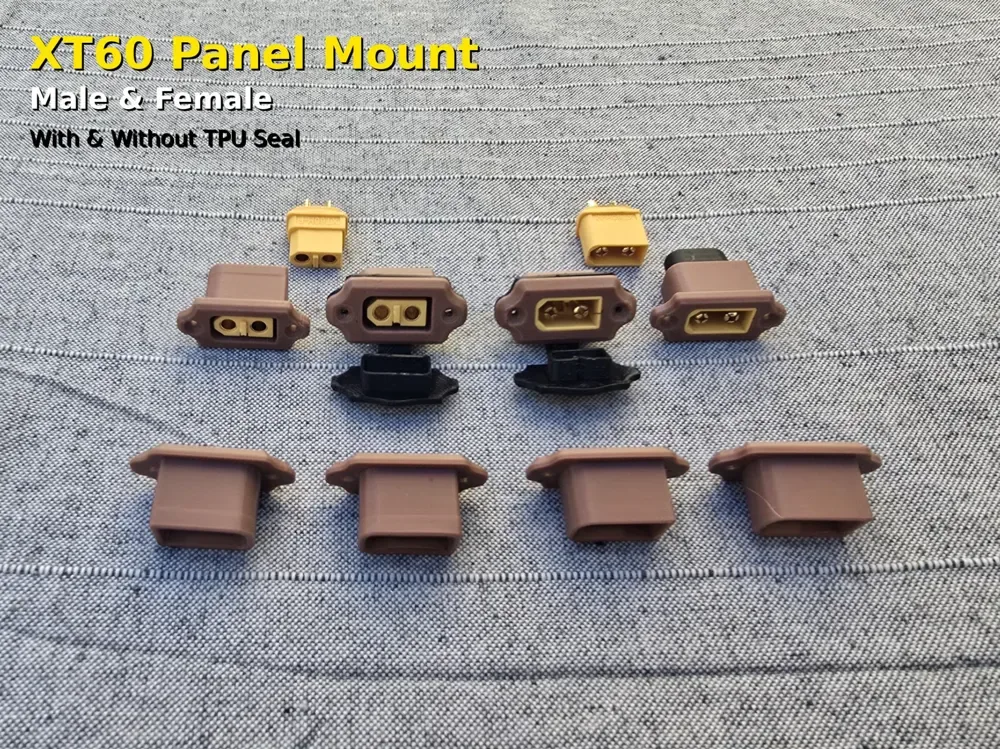

Creator design reference for XT60H Female Panel Housing with TPU Dust Cap; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Electronics & racks / Parts for your next project

XT60H Female Panel Housing with TPU Dust Cap

3D printed in PETG + TPU for holding an XT60H connector at a panel opening.

$27.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG + TPU for holding an XT60H connector at a panel opening. Includes one 34 mm outer-width female panel housing and its female TPU dust cap. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.

What’s included

  • One 34 mm outer-width female panel housing and its female TPU dust cap.
  • Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Place a connector where it is easy to reach

This female panel housing is intended for a separately supplied XT60H connector, with a matching female TPU dust cap for the unused opening. It is useful when a project needs the connector at a deliberate panel position instead of on a loose cable end. Plan the location around the direction of the mating plug and the space needed to grip it. A reachable connector can simplify setup and disconnection, especially when the rest of the project is enclosed. Also decide where the cap will sit while the connection is in use so it does not interfere with nearby controls or cables.

Check the XT60H body and panel details

Confirm the exact female XT60H component and compare its body shape, rear details, and wire exit with the housing. Similar connector names do not establish an identical physical fit. The 34 mm dimension in the product description is the housing's outer width, not the required panel cutout. The housing and cap bounding measurements are listed separately and do not define the installed depth or mating clearance. Check panel thickness, the intended retention arrangement, room behind the connector, and the space in front for the complete plug. Include any cable covering or separately supplied support that will change the rear clearance before finalizing the panel position.

Use the cap as part of a tidy connection routine

Trial-fit the housing, connector body, and cap with the project unpowered. Check that the cap seats on the intended interface without pressing on conductive components or preventing deliberate removal. When connecting a cable, handle the plug body and avoid transferring repeated cable pulls into the printed panel housing. Keep the cap clean and inspect its seating after it has been dropped or stored loose among other parts. The PETG and TPU pieces supply mechanical housing and covering functions; no waterproof, electrical isolation, or current rating is established by them. Before reconnecting after storage, remove the cap and inspect the connector area so debris is not pushed into the mating interface.

Product questions

What does the listed price include?

One 34 mm outer-width female panel housing and its female TPU dust cap. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Is 34 mm the hole size for the panel?

No. It describes the outer housing width. Confirm the fitting portion, retention features, panel thickness, and required opening before making a cutout.

Will the cap seal the connector against rain?

No weather-sealing rating is specified. Treat it as the described dust cap and assess any environmental protection needed by the complete project separately, including panel joints and cable entries.

Can I substitute a different XT60 connector body?

Check its exact shape before doing so. The housing is identified for an XT60H female arrangement, and differences at the rear or mating body can affect fit even when the connector family sounds similar.

Original design: Nacho — XT60H Panel Mount Case + TPU Dust Cap. MakerWorld model 2664740. Original design
