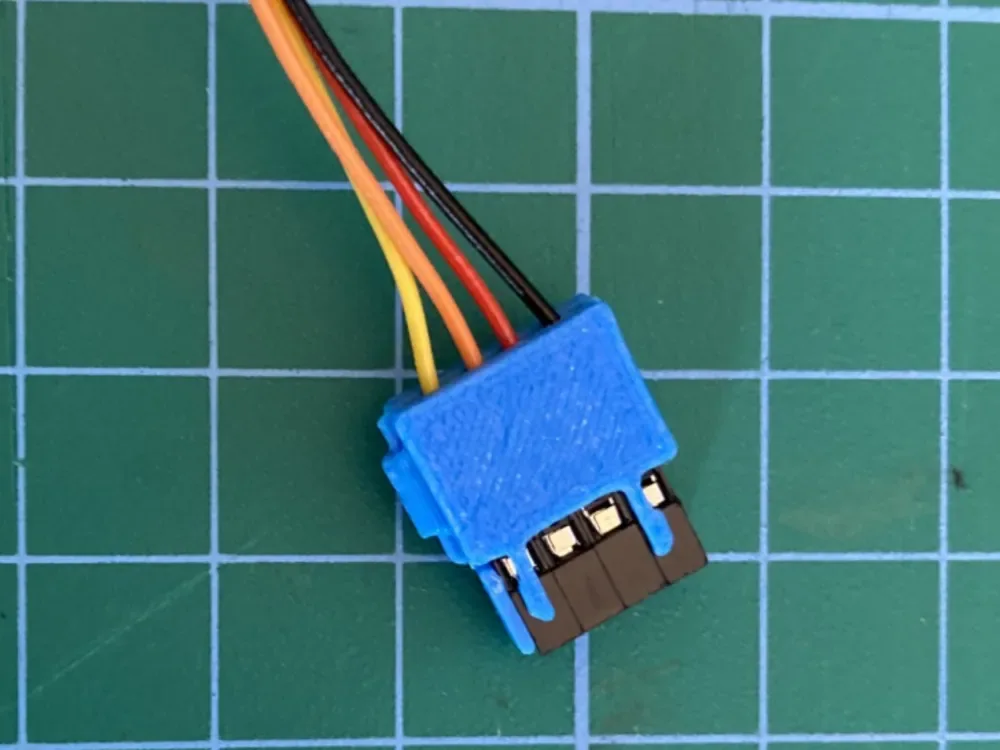

Creator design reference for Four-Pin Dupont-to-JST XH Adapter Housing; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Electronics & racks / Parts for your next project

Four-Pin Dupont-to-JST XH Adapter Housing

3D printed in PETG for holding separately supplied connector components.

$27.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for holding separately supplied connector components. Includes one four-pin adapter housing comprising its two printed halves. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included. Printed housing only; no electrical function is supplied.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.

What’s included

  • One four-pin adapter housing comprising its two printed halves.
  • Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Give a four-pin adapter project a defined body

This housing is intended for a four-pin Dupont-to-JST XH connector project using separately supplied electrical components. Its two printed halves provide a physical arrangement around which you can plan the connectors and wire exits. It is useful to begin by identifying the exact purpose of the adapter and the devices it will join. Keeping that purpose clear helps when several visually similar leads are present on the same bench. A defined body can make a small assembly easier to handle and identify, but the completed electrical behaviour still depends on its contacts, wiring, and any circuitry supplied elsewhere in the project.

Check both connector interfaces before assembly

Compare the specific Dupont and JST XH components you intend to use, including their outer housings, contact arrangement, and the direction in which the wires leave. The two printed pieces are listed at approximately 15 × 13 × 3.9 mm and 13.5 × 13.7 × 3.42 mm. These separate bounding dimensions do not describe the assembled adapter size or the clear space for each conductive component. Trial-fit the parts with the project unpowered and check the mating plugs as well as the internal pieces. Allow room to grip and unplug the completed adapter, especially if it will sit close to a board edge or another connector.

Preserve the connection order and service access

Confirm the intended pin order from your actual project documentation before closing the housing. Connector names and similar wire colours do not establish equivalent signal assignments or polarity between two devices. Ensure that separately supplied contacts are retained appropriately and that the printed halves do not trap insulation or force wires into an awkward turn. The PETG housing provides no electrical conversion on its own. Keep soldering work away from the printed parts and inspect the assembled body after a cable pull or a change to the wiring. A simple label or accompanying pin-order note can help keep the adapter tied to the project for which it was built.

Product questions

What does the listed price include?

One four-pin adapter housing comprising its two printed halves. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Does this automatically convert the pinout?

No. The printed housing has no electrical function and does not assign or rearrange contacts. Verify the required pin mapping for the two devices and build the separate electrical assembly accordingly.

Will it fit every four-pin JST-style connector?

No universal fit is specified. This listing identifies JST XH and Dupont components; compare the exact connector series and body geometry rather than relying on a similar appearance or the same pin count.

Why are there two printed halves?

They form the supplied housing arrangement around separately provided connector components. Confirm their mating geometry and internal clearance during a trial fit; their separate measurements do not define a complete assembled electrical adapter.

Original design: WR Design — Dupont female to JST XH male adapter 4pin. MakerWorld model 2597927. Original design
