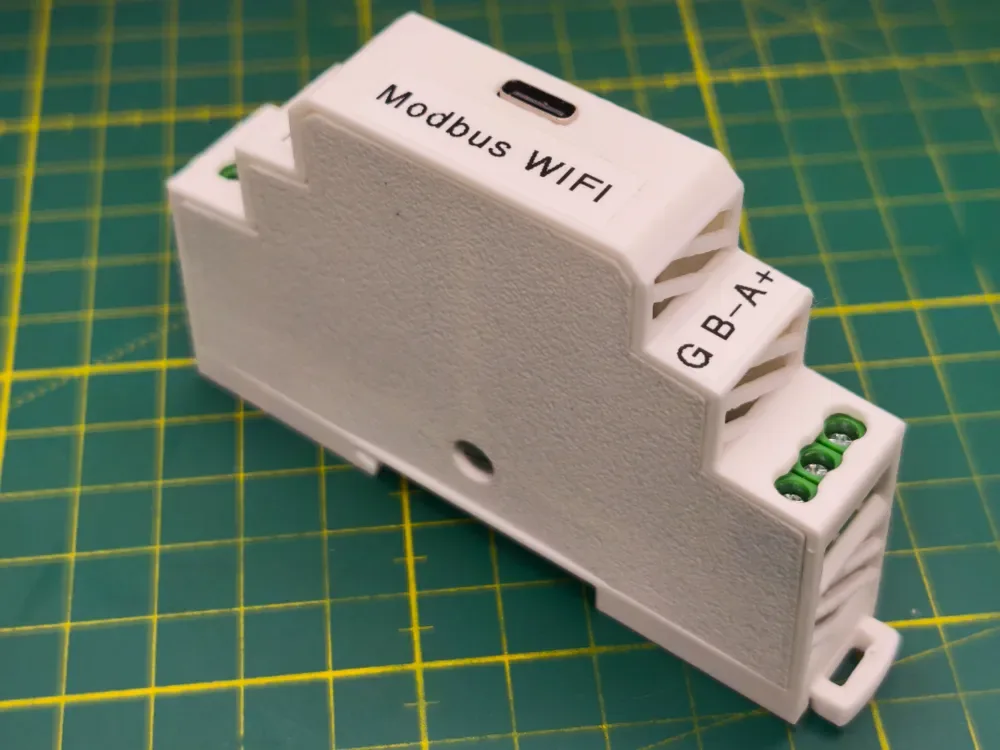

Design reference photoCreator photo; included parts are listed below. Accessories not included.
DIN-Rail ESP32 Project Enclosure
3D printed in PETG for housing a compatible ESP32 and RS485 project.
Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.
Check fit before ordering ↓A closer look
3D printed in PETG for housing a compatible ESP32 and RS485 project. Includes one enclosure body, lid and printed latch. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.
Check the fit
Start with these details so you can choose the right part for your setup.
- Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.
What’s included
- One enclosure body, lid and printed latch.
- Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.
Plan a compact rail-mounted project layout
This enclosure is intended for a compatible ESP32 and RS485 project that benefits from a defined position on a DIN rail. Start by mapping the project's external connections and deciding where you will need access for setup, inspection, or changes. A rail-mounted arrangement can make a group of small project components easier to locate, but only if their connectors remain reachable once the surrounding equipment is in place. Think about cable entry and removal alongside the enclosure position. The body, lid, and printed latch provide housing parts for that layout; the electronics and the actual communication or control function come from the separately supplied project components.
Compare the boards and rail engagement
Check the complete ESP32 and RS485 board arrangements, including their outlines, component heights, terminals, and any added headers. Family names alone do not establish the same mechanical layout across every module. Compare the intended DIN-rail interface with the printed latch and leave room to operate it when the enclosure is installed. The three listed bounding dimensions describe the body, lid, and latch separately; they are not an assembled case size or a specification of internal board clearance. Include connected wires and plugs in the check. If the enclosure will sit beside other modules, confirm that the lid and latch remain accessible without removing the whole row.
Keep the project inspectable after installation
Trial-fit the printed parts and boards with power disconnected. Confirm that components do not press against the lid and that wiring is not trapped along its edges. Plan wire identification before closing the housing so the external connections remain understandable during service. Follow the requirements of your boards and the wider installation, including their operating and clearance guidance; the PETG enclosure does not establish an electrical, fire, or environmental approval. For routine changes, support the housing while operating the latch and keep cable forces from pulling against the rail connection. Recheck the fit whenever a connector or board is replaced, because a small change in terminal height can alter lid clearance.
Product questions
What does the listed price include?
One enclosure body, lid and printed latch. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.
Will this match everything shown in the photo?
The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.
Will any ESP32 and RS485 boards fit together?
No universal board combination is specified. Compare both complete boards, connectors, and wiring space with the enclosure geometry. Photos and measurements of the proposed pair help resolve fit before assembly.
Does the enclosure include an RS485 converter?
No electronics are supplied. The enclosure provides the printed housing arrangement for a compatible project; communication capability depends on the separately selected boards, wiring, and software.
What matters when fitting several units together?
Check cable routes, identification, lid access, and space to operate each latch. Leave sufficient room to service one project without putting sideways pressure on neighbouring housings or their connected wires.
Original design: Der RC-Modellbauer — ESP32 DIN‑Rail Gehäuse mit RS485/Modbus. MakerWorld model 2538385. Original design
