Dupont Connector Joining Shell — Four Pin
3D printed in PETG for mechanically grouping compatible jumper-wire connectors.
Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.
Check fit before ordering ↓A closer look
3D printed in PETG for mechanically grouping compatible jumper-wire connectors. Includes one male and one female four-pin printed joining shell; contacts and wires excluded. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.
Check the fit
Start with these details so you can choose the right part for your setup.
- Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.
What’s included
- One male and one female four-pin printed joining shell; contacts and wires excluded.
- Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.
Make a four-wire connection easier to manage
These joining shells are intended to mechanically group compatible four-pin jumper-wire connectors. They are useful when a small set of leads belongs together and you want a clearer physical arrangement during assembly or troubleshooting. Begin by deciding which four signals or connections form the group and record their order before fitting the shells. A grouped connector can be easier to handle than several loose single leads, but the value comes from preserving an understood arrangement. Keep the same orientation reference on your project notes and on the actual assembly so reconnecting the group does not depend on remembering which way it was held last time.
Compare the existing connector bodies
Check the shape and spacing of the jumper-wire connectors you intend to group. The male and female printed shell names describe the supplied housing pair, while the contacts and wires remain separately supplied. Their approximate 5.65 × 17.8 × 12.5 mm and 7.65 × 16.6 × 11.5 mm dimensions are overall part measurements, not a complete electrical connector specification. Trial-fit the actual connector bodies and check whether wire exits remain clear. Also look at the target header or mating connector: nearby components can make a grouped body harder to reach even when the individual leads previously fitted. Leave enough gripping space to connect and remove the group without pulling the wires.
Preserve the wire order through assembly
Work with the project disconnected and confirm the intended pin order before closing or seating the printed arrangement. Check each connection against your project documentation rather than relying on wire colour alone. The PETG shells group the compatible components mechanically and do not correct reversed wiring or change the electrical characteristics of the leads. During service, grip the connector arrangement deliberately and support nearby components so a tight connection is not released by jerking the cable bundle. Inspect for loose bodies or trapped insulation after changes. Keeping a simple pin-order note with the project is especially helpful when the same style of connector appears in several different locations.
Product questions
What does the listed price include?
One male and one female four-pin printed joining shell; contacts and wires excluded. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.
Will this match everything shown in the photo?

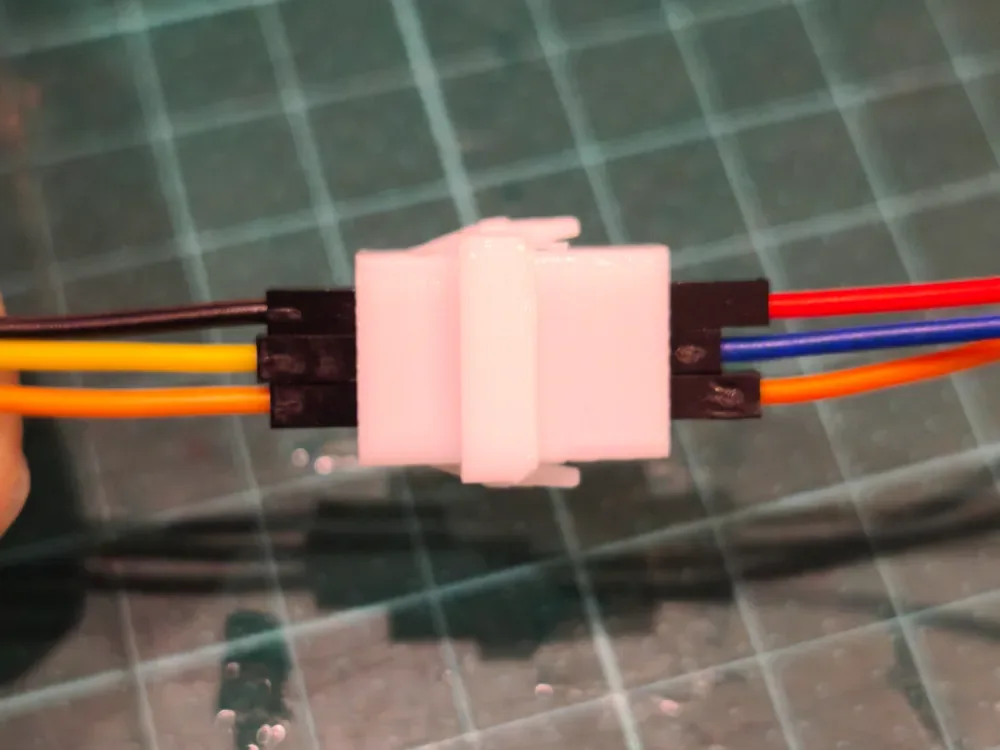

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.
Does grouping the leads establish a standard pinout?
No. The shell does not assign signals or polarity. Record and verify the actual wire order for your project, particularly if several similar four-pin connectors are used on the same bench.
Can I use it for a three-pin or five-pin group?
This listing is for the four-pin arrangement. A different number of contacts needs its own geometry check or another suitable shell; do not infer a fit by leaving a position empty or adding a loose lead.
Will the shells prevent every accidental disconnection?
No retention-force specification is provided. Check the fit of your actual connector bodies and route the wires so normal handling does not continually pull against the grouped connection.
