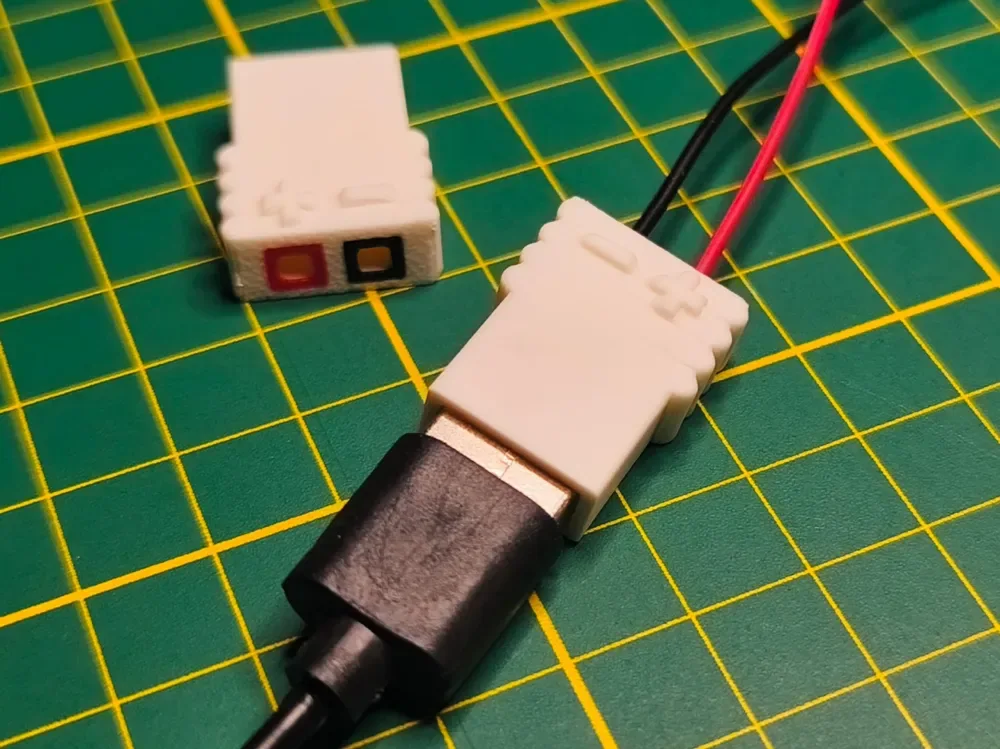

Creator design reference for USB-A to Dupont Adapter Housing; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Electronics & racks / Parts for your next project

USB-A to Dupont Adapter Housing

3D printed in PETG for holding separately supplied connector components.

$27.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for holding separately supplied connector components. Includes one printed adapter housing; contacts and conductive inserts excluded. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included. Printed housing only; no electrical function is supplied.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.

What’s included

  • One printed adapter housing; contacts and conductive inserts excluded.
  • Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Plan a compact connector project with a defined shell

This housing is intended to hold separately supplied connector components in a USB-A to Dupont project. It is useful when you want a small adapter arrangement to have a planned physical body instead of leaving the connector components loose. Start with the actual connection task and identify what must enter or leave the housing. The shape can help organize those parts, but the completed function depends on the contacts, conductive inserts, wiring, and circuit choices made elsewhere in the project. Keep a clear record of that intended function so the finished object is not mistaken for a general-purpose USB adapter simply because it has a familiar connector form.

Check the connector geometry and handling room

The printed housing measures approximately 17.91 × 23.2 × 8.3 mm overall. These bounding dimensions do not establish the sizes of internal features or the compatibility of every USB-A or Dupont component. Compare the specific contact pieces, wire exits, and mating connector bodies you plan to use. Check how the finished housing will be gripped during connection and whether it will clear adjacent ports on the target device. Added insulation or a thick cable can change the available room, so include those items in the layout. A mechanical trial fit with the project unpowered is a useful step before committing to the final electrical assembly.

Keep the intended electrical function identifiable

Work from the requirements of the devices and connector components in your project, with their pin assignments and electrical limitations resolved independently of the housing. Check that components are retained appropriately and that conductors cannot be displaced by normal insertion or removal. Any necessary strain relief must be provided by the completed arrangement rather than assumed from the printed shell alone. Mark or document the adapter's purpose so it can be distinguished from other small leads on the bench. Keep the PETG part away from soldering heat and inspect it if a plug is forced or a wire is pulled. Store the completed project where small connectors will not be crushed beneath heavier tools.

Product questions

What does the listed price include?

One printed adapter housing; contacts and conductive inserts excluded. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, metal contacts, fasteners, accessories shown and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Will the housing convert a USB signal?

No. The printed housing has no electrical function. Any power or signal behaviour depends on separately supplied conductive components and circuitry, selected and connected for the specific project.

Can I use it with any Dupont wire?

Check the connector shell, contact arrangement, wire size, and available internal space. The broad connector name does not establish a fit with every preassembled lead or terminal variant.

Why check nearby ports before assembly?

A compact housing can still interfere with a neighbouring plug once its components and wires are fitted. Compare the complete connector body and handling space with the actual device where it will be used.

Original design: Celestin — USB-A Female to Dupont Adapter. MakerWorld model 2293587. Original design
