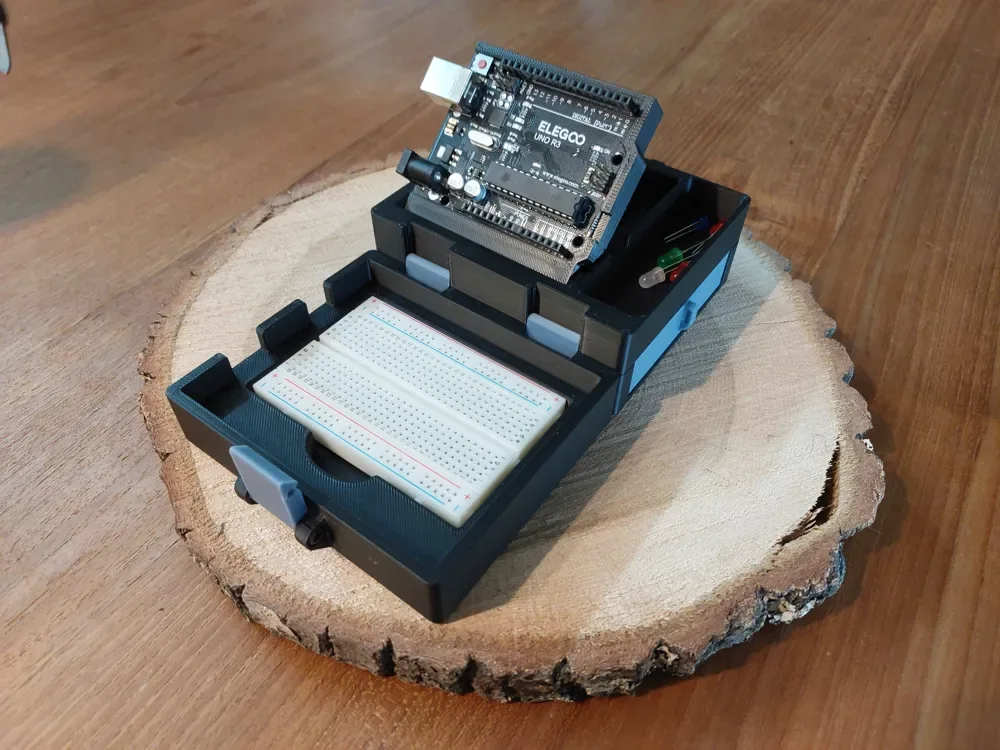

Design reference photoCreator photo; included parts are listed below. Accessories not included. The photo shows an assembled project; this listing includes only the specified printed components.
Portable Arduino Lab — Two-Piece Bracket Set
A two-piece printed bracket set for a microcontroller workspace.
Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.
Check fit before ordering ↓A closer look
A two-piece printed bracket set for a microcontroller workspace. Includes one main microcontroller bracket and one matching flat mounting piece. Electronics, batteries, contacts, fasteners and other accessories are excluded.
Check the fit
Start with these details so you can choose the right part for your setup.
- Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.
What’s included
- One main microcontroller bracket and one matching flat mounting piece.
- Electronics, batteries, contacts, fasteners and other accessories are excluded.
Give a small microcontroller project a defined layout
A repeatable workspace makes it easier to return to an electronics experiment after clearing the desk. This two-piece bracket set provides a main microcontroller bracket and a matching flat mounting piece for a compatible project layout. It is useful to consider when arranging an Arduino-based demonstration, a learning setup or a work-in-progress prototype. Lay out the intended board and nearby components before choosing the mounting position. A good arrangement keeps the board accessible for programming and inspection while giving its cables an obvious route. The printed pieces provide the physical mounting elements described here; the rest of the lab comes from your own components.
Match the specific board and its connected cables
Arduino-related boards come in different physical layouts, so confirm your exact board rather than relying on the project name. Compare its outline, mounting holes, underside clearance and connector positions with the bracket. Check the board with its USB cable and any other intended leads connected, because plugs need space beyond the board's edge. The approximate 72.08 × 11.5 × 70.99 mm and 50 × 2.8 × 33 mm component sizes describe the separate printed parts. They are not measurements of a supported board, nor a guarantee of usable clearance under it. Include any separately chosen spacers or fasteners in the comparison.
Keep experiments accessible between sessions
Plan the layout so frequently used headers and controls remain reachable once the board is mounted. Leave room to disconnect a lead by its connector body and avoid routing wires across mounting points you may need to revisit. Assemble and inspect the arrangement while the project is disconnected from power. Before moving a portable setup, check which components are actually retained and which remain loose; these brackets do not turn an open prototype into a transport case. For storage, keep loose conductive items away from exposed electronics. Dust the printed pieces gently and repeat the clearance checks whenever the board, cable arrangement or attached components change.
Product questions
What does the listed price include?
One main microcontroller bracket and one matching flat mounting piece. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Electronics, batteries, contacts, fasteners and other accessories are excluded.
Will this match everything shown in the photo?
The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.
Will the bracket fit any board sold as Arduino compatible?
Compatibility needs to be checked against the actual board outline, hole pattern and connectors. The Arduino project name does not identify one universal physical board layout.
Do these pieces enclose the finished electronics?
They are a bracket set for arranging a compatible microcontroller workspace. No complete protective enclosure or transport case is included in this listing.
What measurements help confirm a board fit?
Send the board dimensions, mounting-hole spacing, connector locations and a side view showing underside components. Include the intended mounting surface and any spacers you plan to use.
Original design: DJL 3Designs — Portable Arduino Lab. MakerWorld model 1480487. Original design
