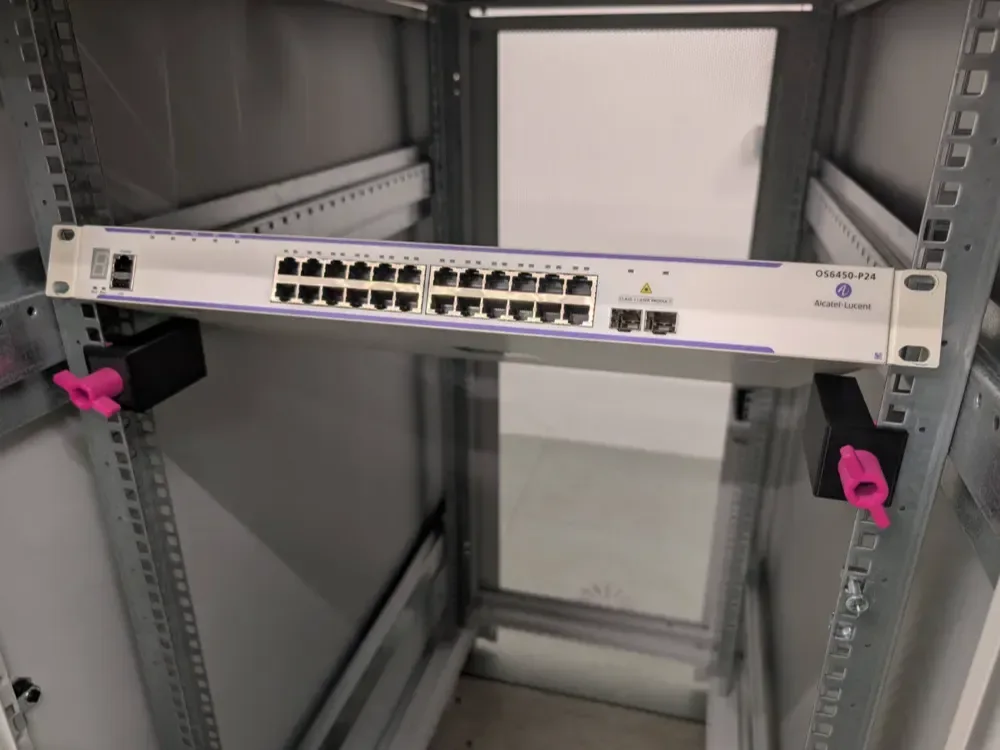

Creator design reference for 19-inch Rack Installation Helper — V3, 65 mm; included printed parts are specified in the listing.Design reference photo

Creator photo; included parts are listed below. Accessories not included.

Electronics & racks / Parts for your next project

19-inch Rack Installation Helper — V3, 65 mm

3D printed in PETG for temporarily positioning compatible rack equipment during installation.

$34.99 CAD

Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.

Check fit before ordering ↓

A closer look

3D printed in PETG for temporarily positioning compatible rack equipment during installation. Includes one V3 65 mm helper body, clamp and printed M6 handle. M6 screw, nut, rack equipment and installation are not included.

Check the fit

Start with these details so you can choose the right part for your setup.

  • Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.
  • An installation positioning aid; do not rely on it as permanent rack support.

What’s included

  • One V3 65 mm helper body, clamp and printed M6 handle.
  • M6 screw, nut, rack equipment and installation are not included.

Prepare a rack installation around the final position

When fitting equipment into a rack, lining up the front mounting points is easier if the target position is planned before the equipment is brought into place. This V3 helper is a temporary positioning aid for a compatible 19-inch rack arrangement. Start by identifying the intended rack space, the equipment's permanent support method and the access needed for fasteners. Have the correct installation hardware within reach and leave the adjacent space clear. The helper can be considered as part of that preparation, while the equipment remains supported according to its own installation requirements. Its role finishes when the permanent mounting arrangement is secured.

Check the clamp, rail and hardware together

The set contains a helper body, a clamp and a printed M6 handle. Supply the separate M6 screw and nut appropriate to the design, and check the complete assembly against the rack rail before placing equipment beside it. Rail shape, openings and nearby hardware can affect how the helper seats. The 65 mm designation identifies this version; it does not establish a rated load or the clearance around a complete installation. Similarly, the listed component dimensions describe the separate printed pieces. Compare the actual rail contact surfaces and confirm that the assembled clamp can sit naturally without obstructing the equipment's permanent mounting points.

Keep the installation sequence easy to reverse

Try the helper on an empty rack location first so you can see how it is fitted, adjusted and removed. Confirm that the handle is accessible and that tightening does not distort the printed body or rack interface. Plan a removal path before bringing equipment into position; cables or neighboring devices can otherwise trap an installation aid after the work is complete. Keep heavy equipment independently supported and use the assistance required by its manufacturer. Once the permanent mounting is complete, remove the helper and store its parts together. Wipe away grit from the contact surfaces and inspect the clamp and handle before the next installation.

Product questions

What does the listed price include?

One V3 65 mm helper body, clamp and printed M6 handle. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. M6 screw, nut, rack equipment and installation are not included.

Will this match everything shown in the photo?

The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.

Can I leave the helper in place as the equipment support?

It is intended for temporary positioning during installation. The equipment needs its appropriate permanent mounting or support arrangement, and this helper has no stated load capacity.

Does the 65 mm version fit every 19-inch rack?

The rack format alone does not confirm the clamp fit. Compare the rail profile, openings, nearby hardware and access for the handle before using this version.

What should I prepare before fitting the printed handle?

Have the separate M6 screw and nut, confirm their fit with the printed parts, and trial-assemble the helper away from the equipment before beginning the installation.

Original design: Fabrion365 — 19" Rack mount helper third hand tool. MakerWorld model 142669. Original design
