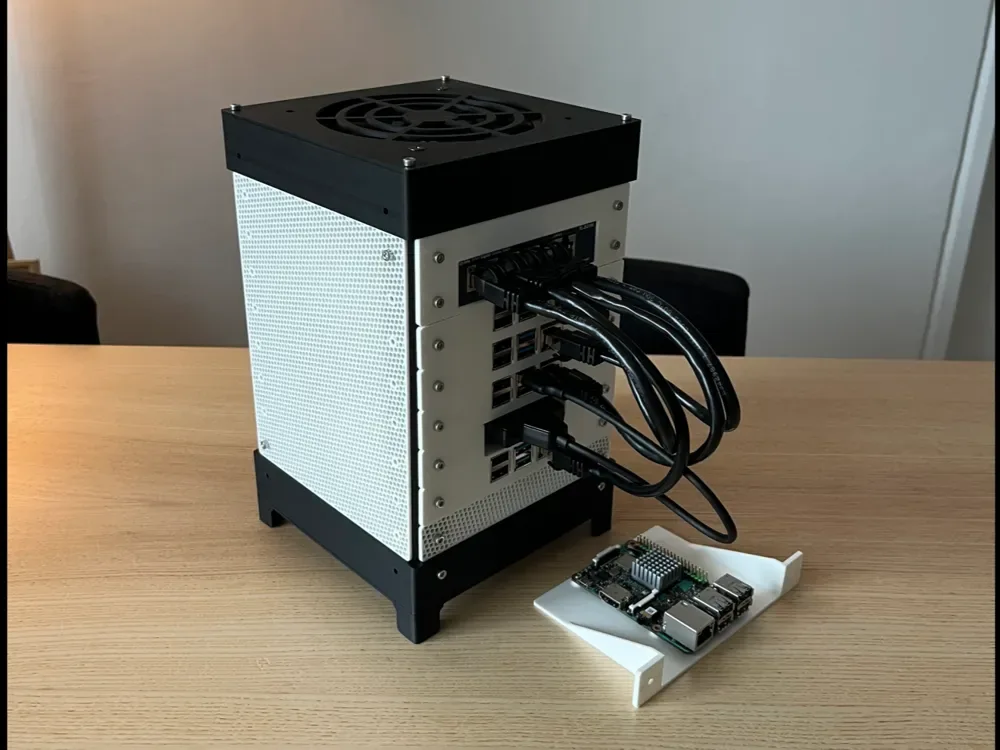

Design reference photoCreator photo; included parts are listed below. Accessories not included. The photo shows an assembled project; this listing includes only the specified printed components.
Microlab 4U Rack Frame Components — 10 Pieces
3D printed in PETG for organizing compatible small computing devices.
Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Secure checkout for Canadian shipping addresses. Choose your quantity on Stripe. Shipping to the U.S.? Contact us for a shipping quote before ordering. U.S. shipping is an additional charge.
Check fit before ordering ↓A closer look
3D printed in PETG for organizing compatible small computing devices. Includes ten printed frame components: four 4U columns, two caps and four edge feet; panels and device trays excluded. Hardware, devices, accessories shown and installation are not included.
Check the fit
Start with these details so you can choose the right part for your setup.
- Confirm your board, connector or rack dimensions and mounting-hole pattern before ordering.
What’s included
- Ten printed frame components: four 4U columns, two caps and four edge feet; panels and device trays excluded.
- Hardware, devices, accessories shown and installation are not included.
Start with a small-device layout
These Microlab frame components provide the printed structure for a compatible small computing-device project. Before planning the build, list the devices you want to organize and their supporting trays or panels. Record where power and data connectors face and which devices need regular access. A useful rack layout keeps those everyday tasks manageable while bringing related equipment into one location. The frame set is a starting point for that arrangement; the way the devices are supported depends on the additional compatible parts selected for the project.
Understand what the 4U frame pieces establish
The supplied columns, caps and edge feet define a particular Microlab frame configuration. Their individual bounds help identify the pieces: the columns are approximately 20 by 20 by 218.2 mm, and the caps are approximately 160 by 160 by 30 mm. Those numbers do not describe a guaranteed assembled interior volume or a standard equipment fit. Compare the intended tray interfaces, attachment points and final arrangement before ordering. The 4U name should not be used as a shortcut for assuming compatibility with unrelated rack systems.
Leave space for cables and maintenance
Sketch the rack with actual cables connected to the devices. A unit that fits neatly without its leads may need considerably more rear or side space once connectors and bends are included. Keep access to removable storage, buttons and indicators in the plan. Follow each device's own ventilation guidance and avoid filling every visible gap simply because another item can be placed there. Decide where cables will be supported separately so the leads do not pull against small devices or complicate removing a tray.
Assemble and assess before loading equipment
Lay out the printed components and compare the interfaces with the selected compatible project parts before beginning assembly. Choose any necessary hardware to match those interfaces and avoid distorting printed pieces with excessive tightening. Set the completed arrangement on an appropriate stable surface, then assess the fit and support of each device as it is added. No equipment weight capacity is established by this listing. Keep the layout accessible for inspection and reassess it whenever trays, devices or the cable arrangement change.
Product questions
What does the listed price include?
Ten printed frame components: four 4U columns, two caps and four edge feet; panels and device trays excluded. Shipping within Canada is included in the listed price. Applicable taxes are calculated at checkout. Hardware, devices, accessories shown and installation are not included.
Will this match everything shown in the photo?
The creator photo is a design reference and may show other variants, quantities or accessories. The included-parts list describes exactly what this listing supplies.
Does 4U mean ordinary rack equipment will fit?
Not automatically. This is a Microlab frame configuration for a compatible project. Compare the actual tray, panel and frame interfaces rather than treating the name as a universal rack compatibility claim.
Should I choose devices before assembling the frame?
Plan their dimensions, support parts, connectors and maintenance access first. That helps establish whether the completed rack arrangement suits the devices and which additional compatible pieces the build needs.
Can I calculate the assembled size by adding component dimensions?
The listed measurements are individual bounds, and parts may overlap or engage when assembled. Confirm the final arrangement and usable space directly instead of adding those values as though each were a separate layer.
Original design: CB4D — Microlab - Mini Modular Home Server Rack. MakerWorld model 1062225. Original design
